Box motion mechanism, Exquisite & versatile wrapper
Applications
Designed for packing a wide range of products, such as instant noodles, moon cakes, cookies pineapple cakes, sun cakes, wet napkins, biscuits, tape, chocolate, ice pops, handkerchiefs, tissues, solid products including bar, round, dumpling and rectangular shapes.
Designed for packing a wide range of products, such as instant noodles, moon cakes, cookies pineapple cakes, sun cakes, wet napkins, biscuits, tape, chocolate, ice pops, handkerchiefs, tissues, solid products including bar, round, dumpling and rectangular shapes.
Model :
KS-2000M
- 1Easy operation by touch screen.
- 2The small machine to save the space.
- 3Easy maintence design.
- 4Diversiform feeder device base on the product.
- 5Control by servo motor, convenient adjustment.
| Model | KS-2000M TYPE | |
|---|---|---|
| Packing type | Pillow type seal | |
| Speed packs / min | 60-80 packs / min | |
| Max. product dimensions | Length Length | 90-360 mm |
| Width Width | 140 mm | |
| Height Height | 75 mm | |
| Max. film width | 400 mm | |
| Max. film roll diameter | 300 mm | |
| Suitable packing film | CPP, OPP, KOP, PET, cellophane, Foil, Paper, etc, heat sealable material | |
| Suitable film thickness | 20-75 ( micron ) | |
| Power required | 3 kw | |
| Weight | 450 kgs | |

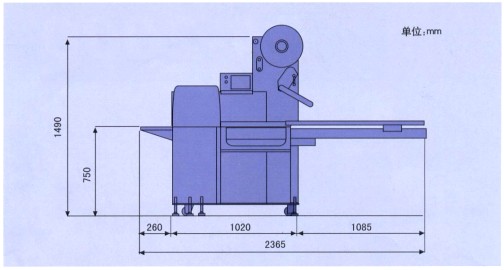

| Machine size | L:2365, W:850, H:1490 mm | |
All specifications and designs are subject to change without notice.
Optional accessories
- 1Date printer
- 2Gusset device
- 3Hole punch device
Flow chart
